27'11" Alloy Cabin

Comfortable, spacious, robust

Experience amphibious freedom with the 8.5m Alloy Cabin.

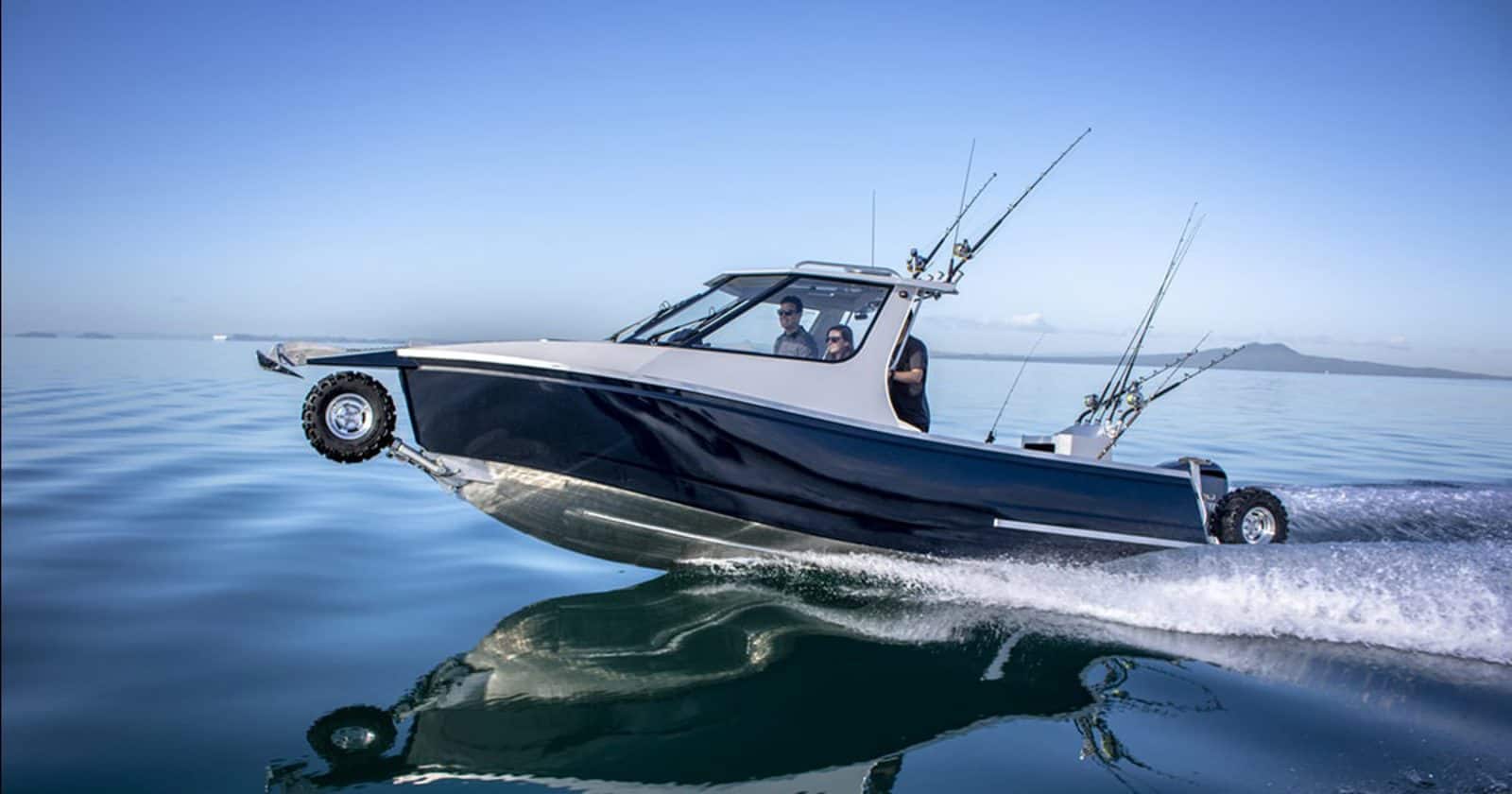

8.5m (27'11") Alloy Cabin: alloy cabin sealegs on water

Effortless amphibious mobility with Sealegs system integration

The seamless integration of the Sealegs System into the transom allows for smooth transitions between land and water, powered by a 40hp inboard engine for difficult terrain and a 250hp outboard for swift cruising up to 39 knots.

Durable all-alloy cabin for maximum weather protection

The all-alloy cabin offers exceptional protection from the elements, ensuring a comfortable and safe experience, whether you're navigating choppy waters or cruising in calm conditions.

Spacious design: comfortably seats up to 6 passengers

Designed for group adventures, the vessel easily accommodates up to 6 passengers, with plenty of room to store gear or transform the deck space into additional seating.

Variable deadrise and plumb bow for a superior ride

Enjoy a smooth ride with the boat’s advanced variable deadrise and unique plumb bow, supported by hydrodynamic stability chines and an optional Zipwake trim-control system for unmatched performance on the water.

Ample underfloor storage for all your gear and essentials

With significant underfloor storage space, you’ll have plenty of room to stow away all your essentials, keeping the deck clear and organized for maximum comfort on your journey.

Powered by a 40HP inboard engine for rugged terrain and a 250HP outboard for speeds up to 39 knots, the 8.5m Alloy Cabin delivers unmatched performance.

12 photos. Tap to enlarge.

Specifications

As published by Sealegs. Options change the numbers.

On land

On-land power: Inboard Gasoline engine, Briggs & Stratton 40HP (29kW) EFI 4-stroke, air cooled
Top speed (Land): 7.5kph (5mph) or 10Kph (6.21mph)
Run Time (Land): 30 min continuous run time per hour with warning alarms
Drive (Land): All Wheel Drive, permanent with optional momentary diff lock
Brakes: Primary/Dynamic – Hydrostatic Emergency/Automatic Park – Hydraulically released mechanical brake
Tires: 26”x 11” all terrain 12-ply tires on 12” alloy rims
Maximum incline (Land): 14 Degrees (25% gradient) up. 11 Degrees (20% grade) down. Avoid driving across a transverse incline.

On water

Recommended & Max Outboard: 1x 250HP (186.4 kW)
Top speed Max (Water): 39 knots (72kph/44 mph)
Fuel Capacity – Gasoline: Below deck 250 liter (66 U.S. Gallons)
Displacement – no fuel: 2230kg (4916lbs)
Steering: Seastar power assisted hydraulic steering with EPS

Measurement

Hull Length Overall (not incl. wheels): 6.7 m (22’)
Height: 3.1m (10’ 2") [Wheels down] · 2.74m (9’) [Wheels up]
Beam overall: 2.31 m (7’ 7”)
Hull Deadrise at transom: 16 degrees

Seating/layout

Seating: 2 Pedestals, Vee-birth cabin squabs, Optional Queen seats
Storage: Vee-birth lockers, Gunnel cubbies, Underfloor locker
Deck: Anti-slip deck tread

Electrical

Batteries: High Crank Start Battery (750CCA) · House battery (90AH)
Drainage and bilge: Deck drains to pod with 1100gph (4164Lph) automatic and switchable bilge pump
Lighting: Bow-mounted LED marine headlight (land use only), LED navigation lights, blue courtesy lights, white/blue interior lights, Cup holder mounted lights
