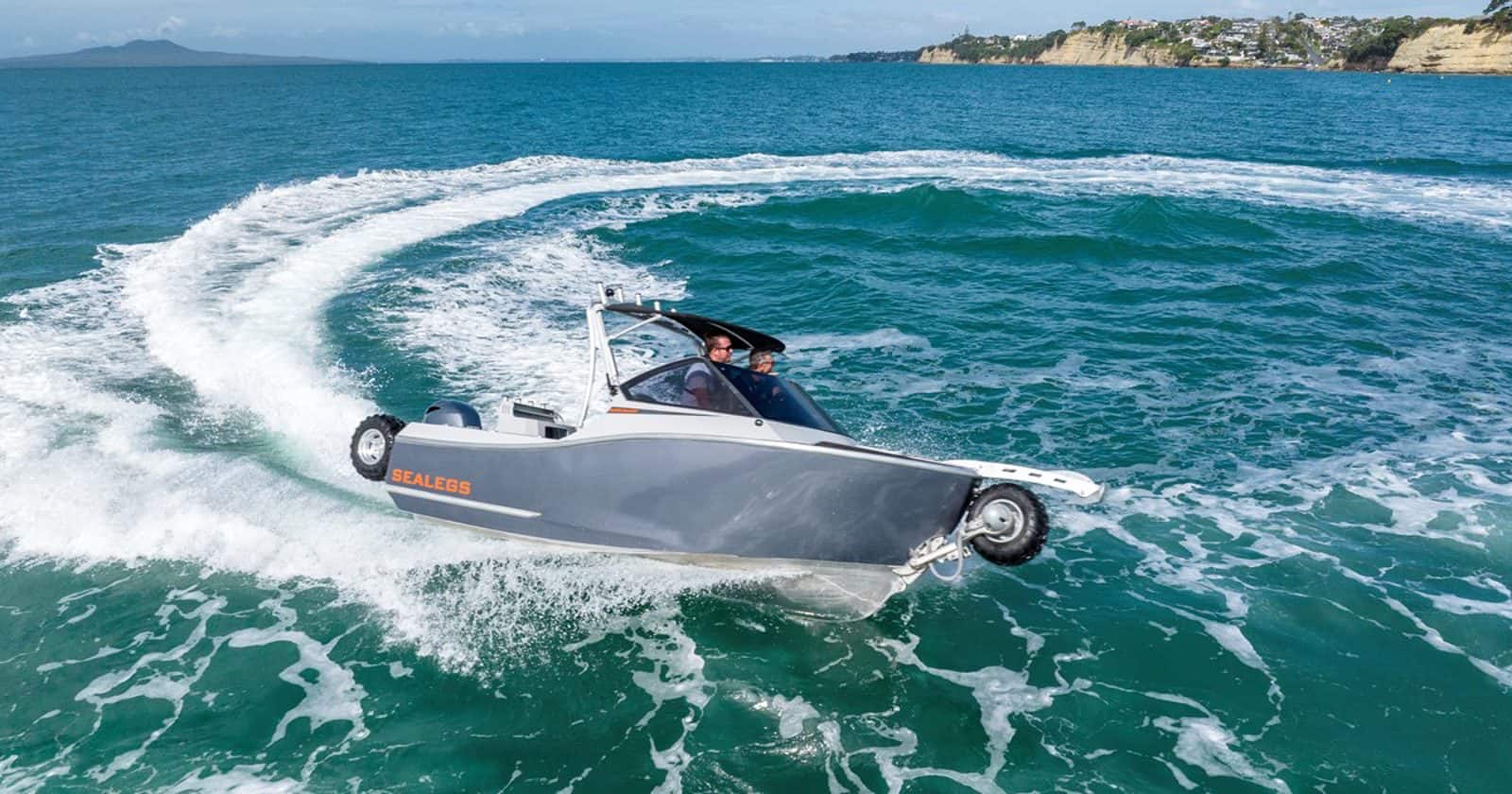

21'4" Alloy Cuddy Cabin
Compact, Robust, Efficient
The 6.5m Alloy Cuddy, the most feature-packed, affordable amphibious solution on the market.
Yamaha 150HP outboard
This amphibious craft delivers exceptional performance on both land and water.
Durable All-Aluminum Hull
This model ensures effortless launch and retrieval.
Designed to fit most garages
Compact to fit 6 passengers comfortably.
Expanded Storage Solutions
Two spacious underfloor kill bins, and a underfloor dry locker, providing ample room for all your essentials.
Smart Transom Design
The twin transom port and starboard fold-out ladders are cleverly concealed within the transom, delivering a sleek appearance and added functionality.
The 6.5m Alloy Cuddy, the most feature-packed, affordable amphibious solution on the market.
Specifications
As published by Sealegs. Options change the numbers.
On land
- On-land power
- Inboard Gasoline Engine, Honda - 24HP (16kW) 4-stroke, air cooled.
- Top speed (Land)
- 10 kmph
- Run Time (Land)
- 30 min continuous run time per hour with warning alarms
- Drive (Land)
- Two Wheel Drive All wheel drive optional with momentary diff lock optional
- Brakes
- Primary/Dynamic – Hydrostatic Emergency/Automatic Park – Hydraulically released mechanical brake
- Tires
- 25”x 9” all terrain 4-ply tires on 9” alloy rims
- Maximum incline (Land)
- 14 Degrees (25% gradient) up. 11 Degrees (20% grade) down. Avoid driving across a transverse incline
On water
- Recommended & Max Outboard
- 1x 200HP
- Top speed Max (Water)
- 36 Knots with 150HP Yamaha
- Fuel Capacity – Gasoline
- 100 Liter Tank in Underfloor Locker
- Displacement – no fuel
- 1,420kg
- Steering
- Seastar power assisted hydraulic steering
Measurement
- Length Overall (wheels up)
- 6.79m
- Hull Length Overall (not incl. wheels)
- 5.2m
- Height
- 2.44m [Wheels Down] · 2.04m [Wheels Up]
- Beam overall
- 2.31m
- Hull Deadrise at transom
- 19 degrees
Seating/layout
- Seating
- Driver and Passenger Bolster Optional Folding Bolster Seat Bench seat on back of engine box.
- Storage
- Bow / cuddy cabin storage full length gunnel storage underfloor wet storage
- Deck
- Anti-slip deck tread optional U-Dek foam decking
Electrical
- Batteries
- High Crank Start Battery (750CCA) · Optional Second battery (90AH House)
- Drainage and bilge
- Automatic & switchable bilge pump
- Lighting
- LED navigation lights
Included
- 1100 GPH Automatic Bilge Pump
- Inboard Engine 24hp
- Batteries x 2
- Rod & Drink Holders
- Navigation Lights
- Fixed Windscreen
- Deck Tread
- Fuel Tank 100L
- Sealegs System 61
- Pedestal Seats
Options
Outboard
- Yamaha 150
Personalisation
- Top Side and Cabin Wrap
Electrical
- Battery Charger 10 amp
- Chartplotter Upgrades - Active Imaging Transducer
- Chartplotter Upgrades - Simrad 3D Structurescan transducer
- Fusion Stereo Head Unit, 2 x 6" Speakers
- Simrad VHF
- Dual Battery System
- AWD - All Wheel Drive
- PS - Power Steering
Accessories
- All-Wheel Differential Lock & High Speed Drive
- Anchor with chain and 50m rope
- Bait Board
- Bait Station for 6.5m Alloy
- Live bait tank
- Lifejacket, Sealegs Black
- Maxtrax
- Utralon U-Dek upgrade
Covers
- 6.5m Craft Storage Cover
Trailers
- Trailer - 6.5m
“A great midsized boat with inbuilt boarding steps at the rear, a real bonus for divers and water enthusiasts.”
Book a demo in the 6.5m Alloy Cuddy Cabin
